R2R vacuum deposition

Organization name

Fraunhofer Institute for Organic Electronics, Elec

Offering type

TECHNICAL SERVICE

Target customers / applications

Manufacturing

Technology

[LAYER DEPOSITION] Vacuum Evaporation / R2R [LAYER DEPOSITION] Magnetron Sputtering / R2R [LAYER DEPOSITION] Other [INSPECTION] Other

Offering Category

[R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Technology concept development (TRL 2) [R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Specific R&D contract research [TECHNICAL SUPPORT FOR SCALE UP] Product prototyping (TRL 4) [TECHNICAL SUPPORT FOR SCALE UP] Manufacturing prototyping [PROVIDER OF TECH INFRASTRUCTURE] Access to Lab facilities and services

Applied technology

Electronics & Components OLED Lighting Organic Photovoltaics Other

Field of Application

Packaging/Logistics Ligthing Health Consumer electronics

Offering Description

The Fraunhofer FEP offers its clients the development of processes and technologies for efficient and cost-effective fabrication of innovative organic electronic solutions in Roll-to-Roll (R2R). In addition to the production of OLEDs, our highly innovative processes and equipment also enable the manufacture of a wide range of other components and layers.

Offering specifications

Specification

50-300mm web width
Metal strips up to 500μm
Polymer webs 50- 500μm
Ultra-thin flexible glass 50-100μm
Process speed 0.01-1m/min
Liner film protection of substrates
Inert transfer between systems

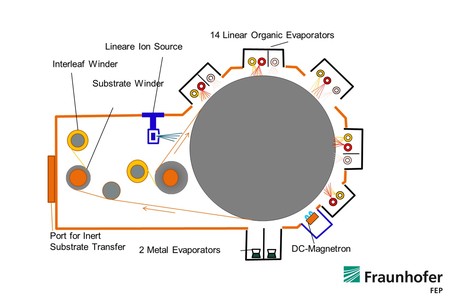

Tool configuration

14 linear evaporators (1 triple, 4 double, 3 single)
2 metal thermal evaporation sources
Magnetron for metal- and reactive metal oxide sputtering
Temperature controlled deposition drum for substrate pre-treatment (heating or cooling) during deposition
