Flexible OLED Lighting

Organization name

Fraunhofer Institute for Organic Electronics, Elec

Offering type

PROTOTYPE

Target customers / applications

Components

Technology

[PRINT] Flexo Printing / R2R [LASER] Laser ablation / S2S [LAYER DEPOSITION] Vacuum Evaporation / S2S [LAYER DEPOSITION] Vacuum Evaporation / R2R [LAYER DEPOSITION] Atomic Layer Deposition ALD / S2S

Offering Category

[R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Technology concept development (TRL 2) [R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Specific R&D contract research [TECHNICAL SUPPORT FOR SCALE UP] Product prototyping (TRL 4) [TECHNICAL SUPPORT FOR SCALE UP] Manufacturing prototyping [TECHNICAL SUPPORT FOR SCALE UP] Product and manufacturing demonstration

Applied technology

Electronics & Components OLED Lighting

Field of Application

Transport/Automotive Ligthing Health Consumer electronics Building & architecture

Offering Description

The Fraunhofer FEP offers its clients the development of processes and technologies for efficient and cost-effective fabrication of innovative OLED lighting solutions in Sheet-to-Sheet (S2S) and Roll-to-Roll (R2R). Typical jobs involve client-specific layout and fabrication of OLED demonstration samples for investigating new fields of application, stacked-layer development and efficiency increases for OLEDs, as well as the integration in different applications.

Offering specifications

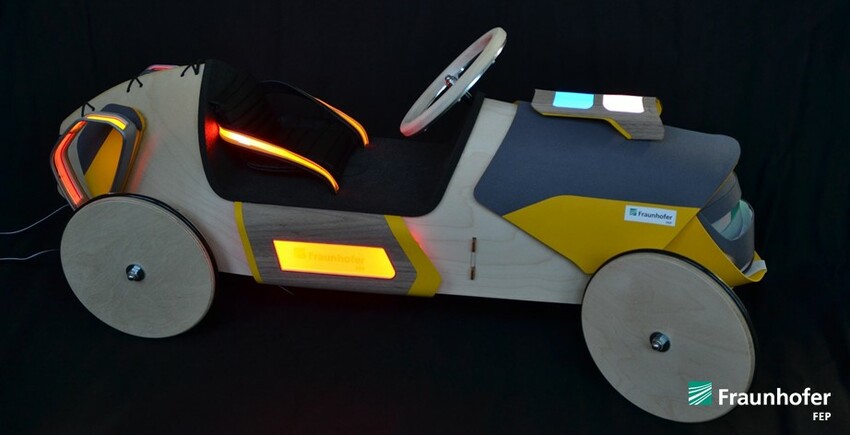

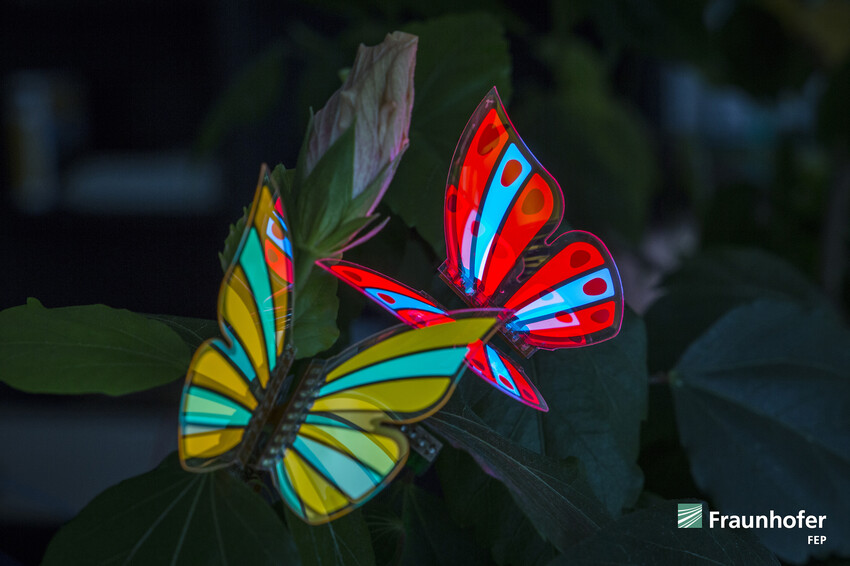

The product offering includes flexible OLED lighting elements for a wide range of applications.

Substrate: polymer film, ultra-thin glass or metal film

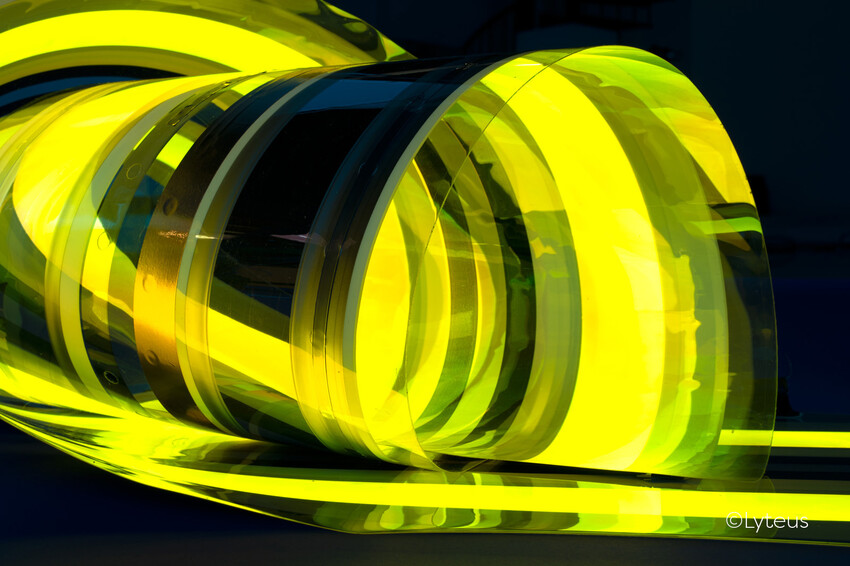

Substrate size: up to 200x200 mm² (S2S); 300 mm width and several meters (R2R)
Thickness: <350 µm
Color: white, red, amber, yellow, green, blue, NIR, etc.
Bottom and top emission or transparent
Brightness: up to 10,000 cd/m
