Animated OLED Lighting
Fraunhofer Institute for Organic Electronics, Elec
PROTOTYPE
Components
[LASER] Laser ablation / S2S [LAYER DEPOSITION] Vacuum Evaporation / S2S [LAYER DEPOSITION] Magnetron Sputtering / S2S [LAYER DEPOSITION] Atomic Layer Deposition ALD / S2S [ASSEMBLY] Low mix assembly (SMD, bare die, foils) / S2S
[R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Proof of concept (TRL3: Critical Function or Proof of Concept Established). [R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Specific R&D contract research [TECHNICAL SUPPORT FOR SCALE UP] Product prototyping (TRL 4) [TECHNICAL SUPPORT FOR SCALE UP] Manufacturing prototyping [TECHNICAL SUPPORT FOR SCALE UP] Product and manufacturing demonstration
Electronics & Components OLED Lighting
Transport/Automotive Ligthing Health Consumer electronics Building & architecture
The Fraunhofer FEP offers its clients the development of processes and technologies for efficient and cost-effective fabrication of innovative segmented and animated OLED lighting solutions. Typical jobs involve client-specific layout and fabrication of OLED demonstration samples for investigating new fields of application, as well as the integration in different products.

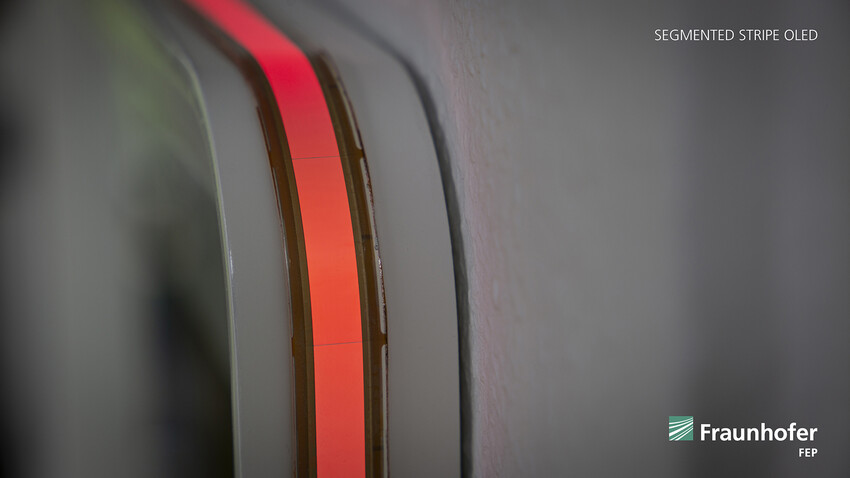

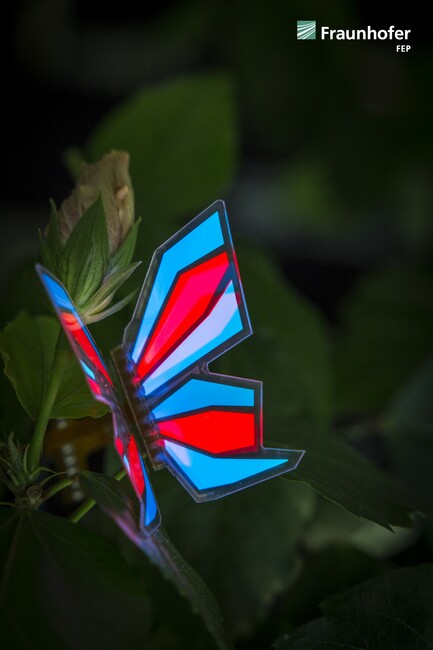

The product offering includes segmented and animated OLED lighting elements for a wide range of applications.

  • Customized design
  • Substrate: polymer film, ultra-thin glass or metal film
  • Substrate size: up to 200x200 mm² (S2S);
  • Thickness: <350 µm
  • Color: white, red, amber, yellow, green, blue, NIR, etc.
  • Bottom and top emission or transparent
  • Brightness: up to 10.000 cd/m²
